Home / AlorAir VentirMax 570SD Ventilator Fan

AlorAir® 570 CFM Crawl Space Ventilator Fan with Temperature Humidity Controller, Speed Control, IP55 Rated Exhaust Fan

Model : VentirMax 570SD
$77.48 USD $86.09 USD -10%

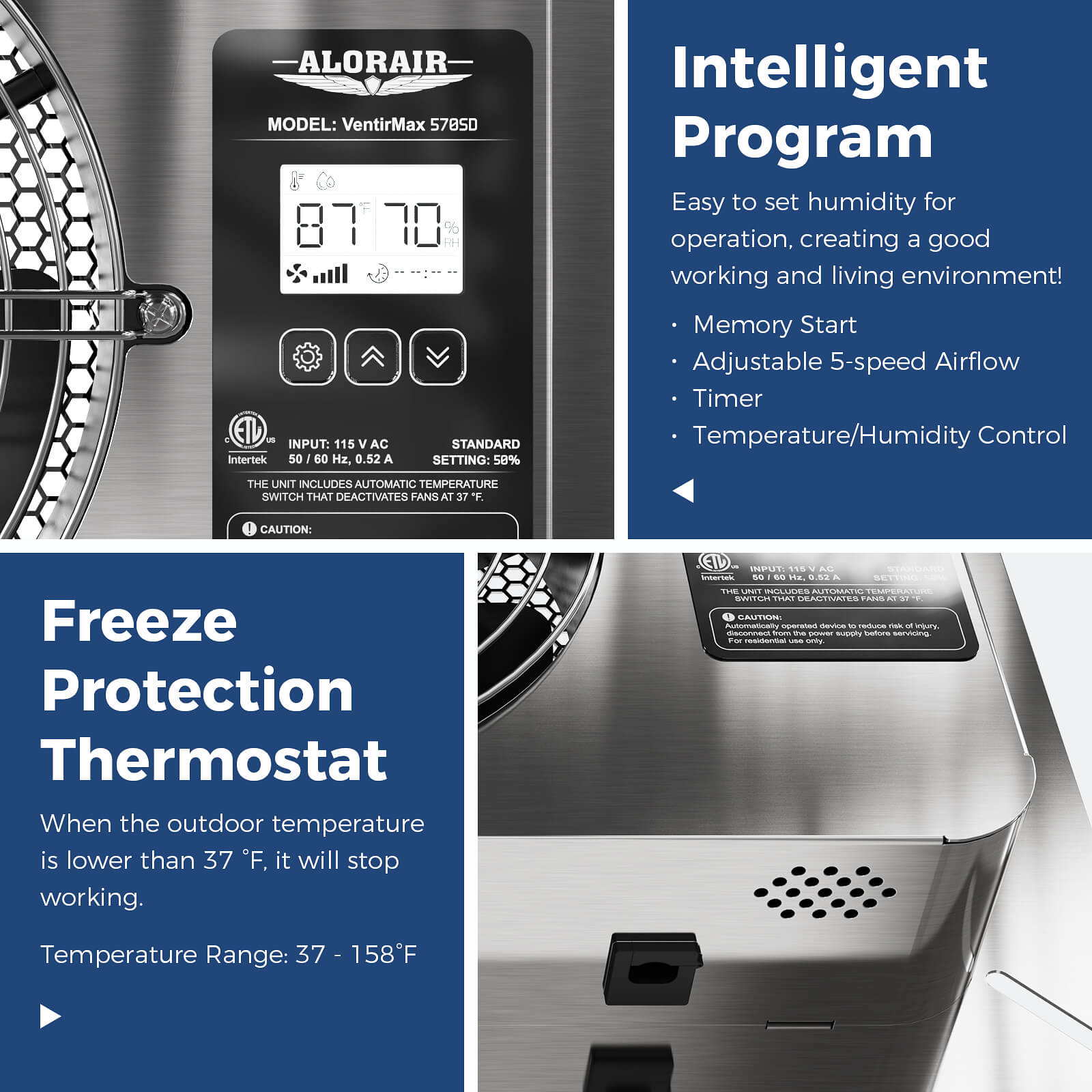

The VentirMax 570SD vent fan has a maximum airflow of 570 CFM and can circulate air in a 950 sq. ft. space six times in one hour. It has a multifunction LCD control panel with programmable control of temperature, humidity and time for three systems in parallel.

Highlights: IP55/ Isolation Mesh/ Anti-freeze Thermostat/ 2 Years Warranty

Pay with Ease:
Trusted Delivery:

Free shipping

Hotline Service

30 Day Returns

Product Overview

AlorAir VentirMax 570SD Ventilator Fan
This high airflow fan provides continuous circulation and rapid dehumidification to improve your indoor air quality. The humidity range is adjustable from 1~99% RH to meet your different climatic requirements. With an adjustable timer for 24 hours and 5-speed settings. Plus, the innovative memory function returns to previous settings after a power failure and restart.


Features
 · Easy to read operation panel
 · Temperature, humidity and time can all be set
 · Built-in dehumidifier to assist in reducing humidity
 · Suitable for reducing humidity in 950 Sq.Ft space.

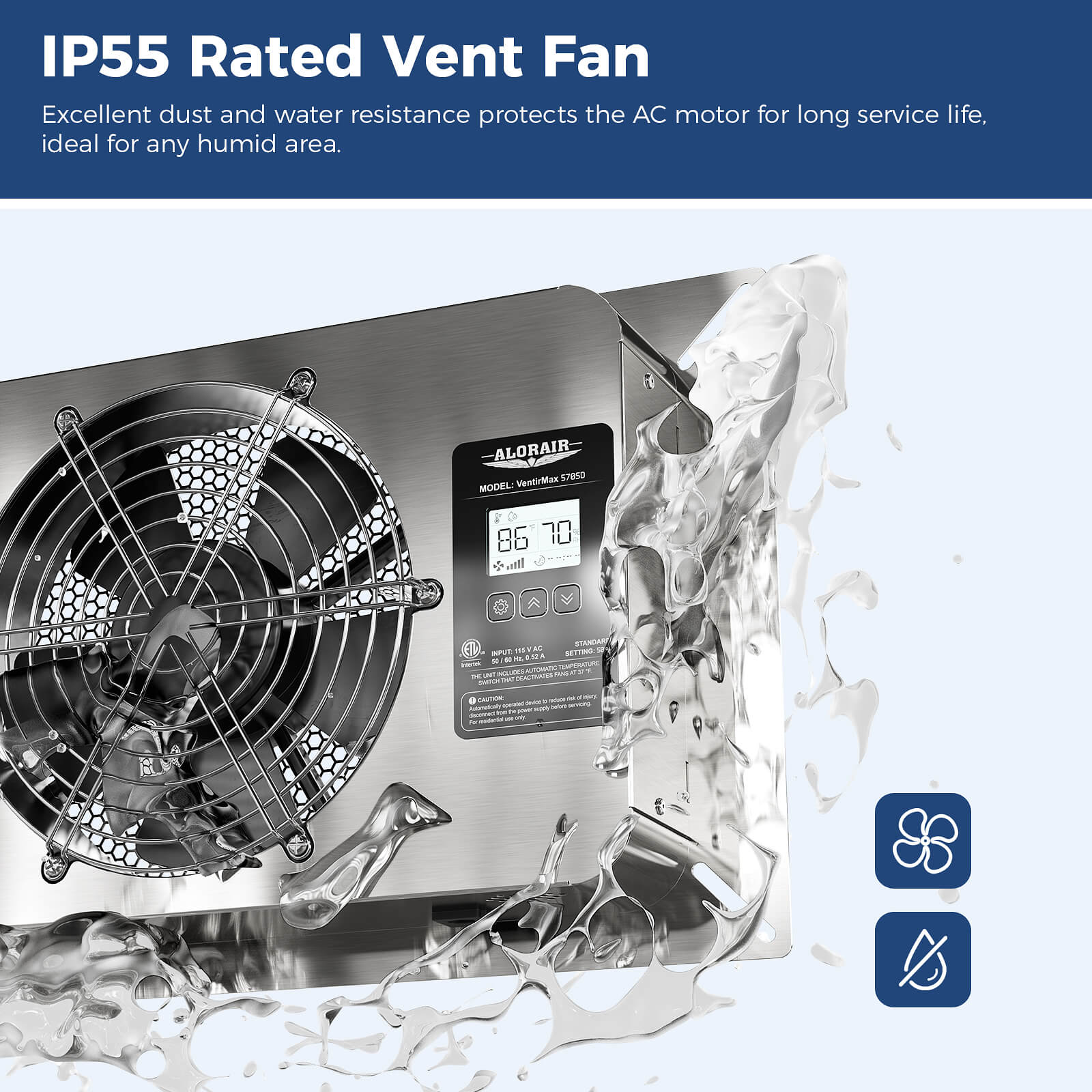

 · IP55-rated ventilation fan (dust and splashproof)
 · Limited noise and quiet operation 55dBA

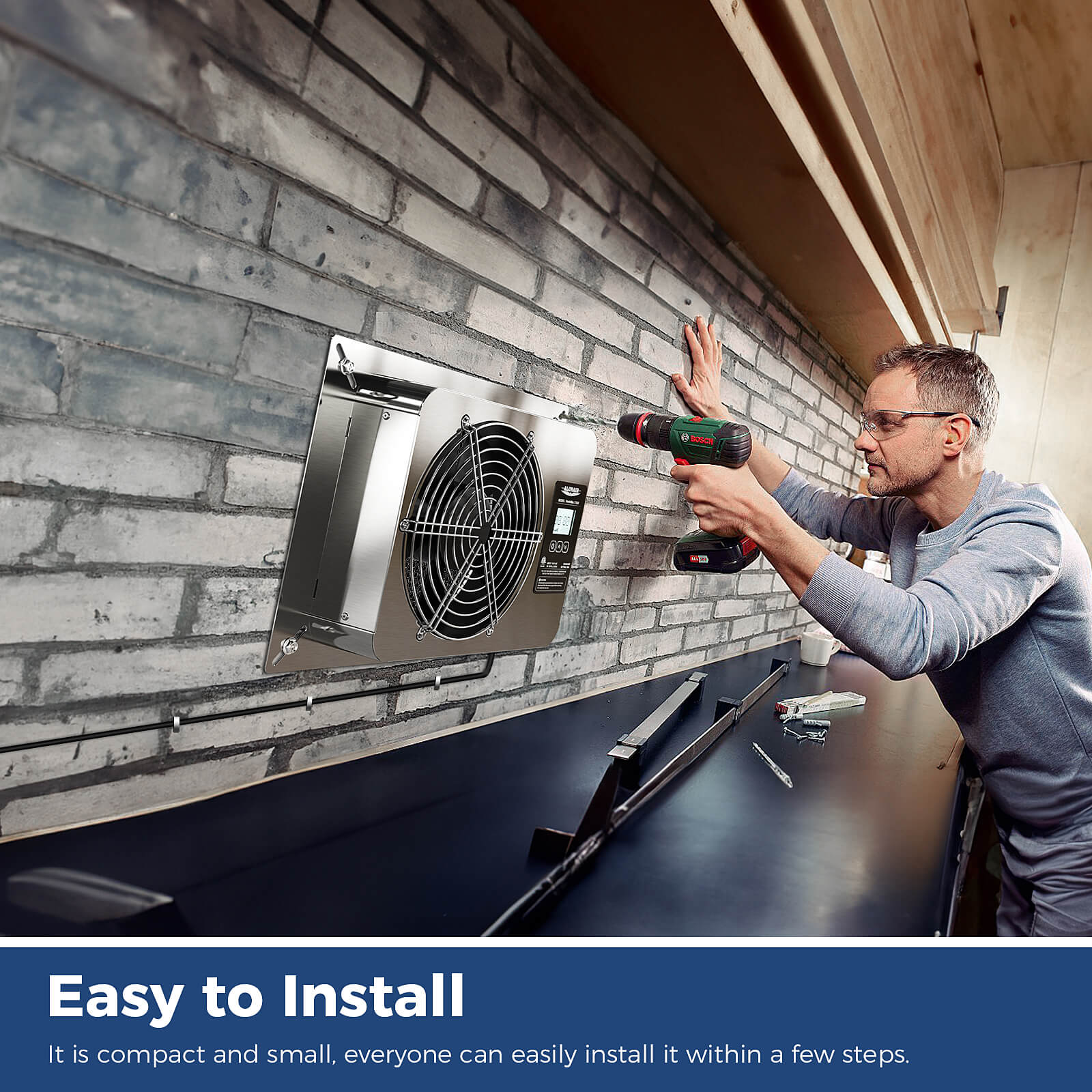

 · Compact and small, can easily install within a few steps
 · Thoughtful addition of barrier mesh to prevent crawlers from entering and affecting the operation


Benefits
Improve Indoor Air - Fans can help reduce the buildup of odors, radon gas, and other pollutants by removing heat that builds up inside the home and increasing airflow.
Prevents Mold Growth - Confined spaces tend to accumulate moisture, which can lead to mold growth, wood rot, and other structural problems. The VentirMax fan's built-in dehumidifier can help reduce humidity and alleviate moisture-related problems.
Energy Savings - The VentirMax 570SD's thermostat keeps a more consistent temperature in the crawl space, and the HVAC system won't have to work as hard to heat or cool the living space above.
Pest Control - Fans can make crawl spaces less attractive to pests like rodents and insects. The increased airflow disrupts their habitat and discourages infection.

  • Specifications
  • Application
  • User Documentation
Power 115 V/60 Hz, 50 W
Current 0.52 A
Air Flow 570 CFM
Size For 950 Sq.Ft
Noise Level <55 dBA
Operating Temperature 37- 158 °F
Humidity Range 1~99%
Power Cord Length 6 ft
Weight 6.76 lbs
Shipping Weight 7.98 lbs

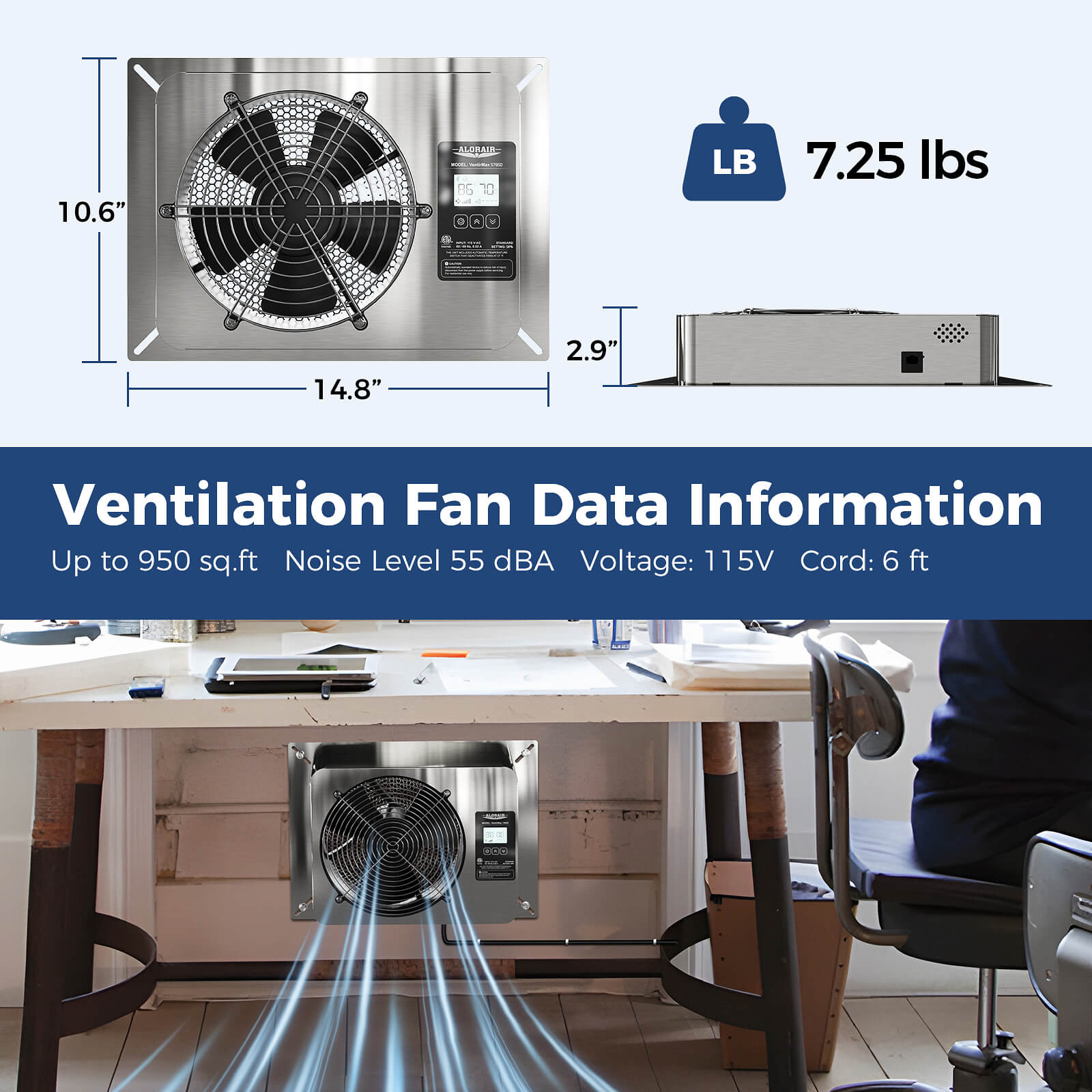

Dimensions (L*W*H) 14.8 × 10.6 × 2.9 in
Loading Quantity \

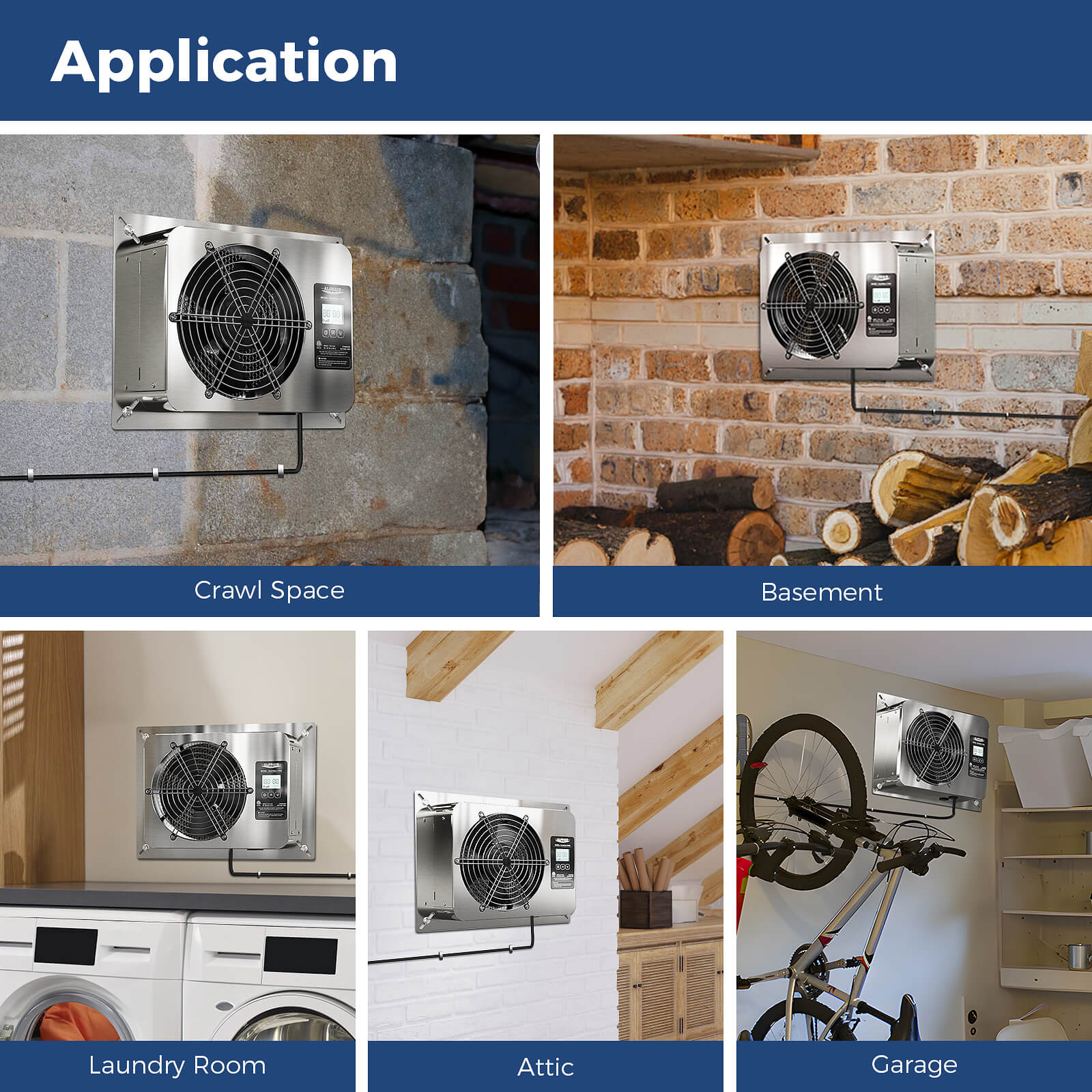

Application
Moisture can cause pipework to fail due to rust and corrosion. Continuous operation of the fan helps to remove radon, gasses from treated wood and other odors that can spread in the living area.

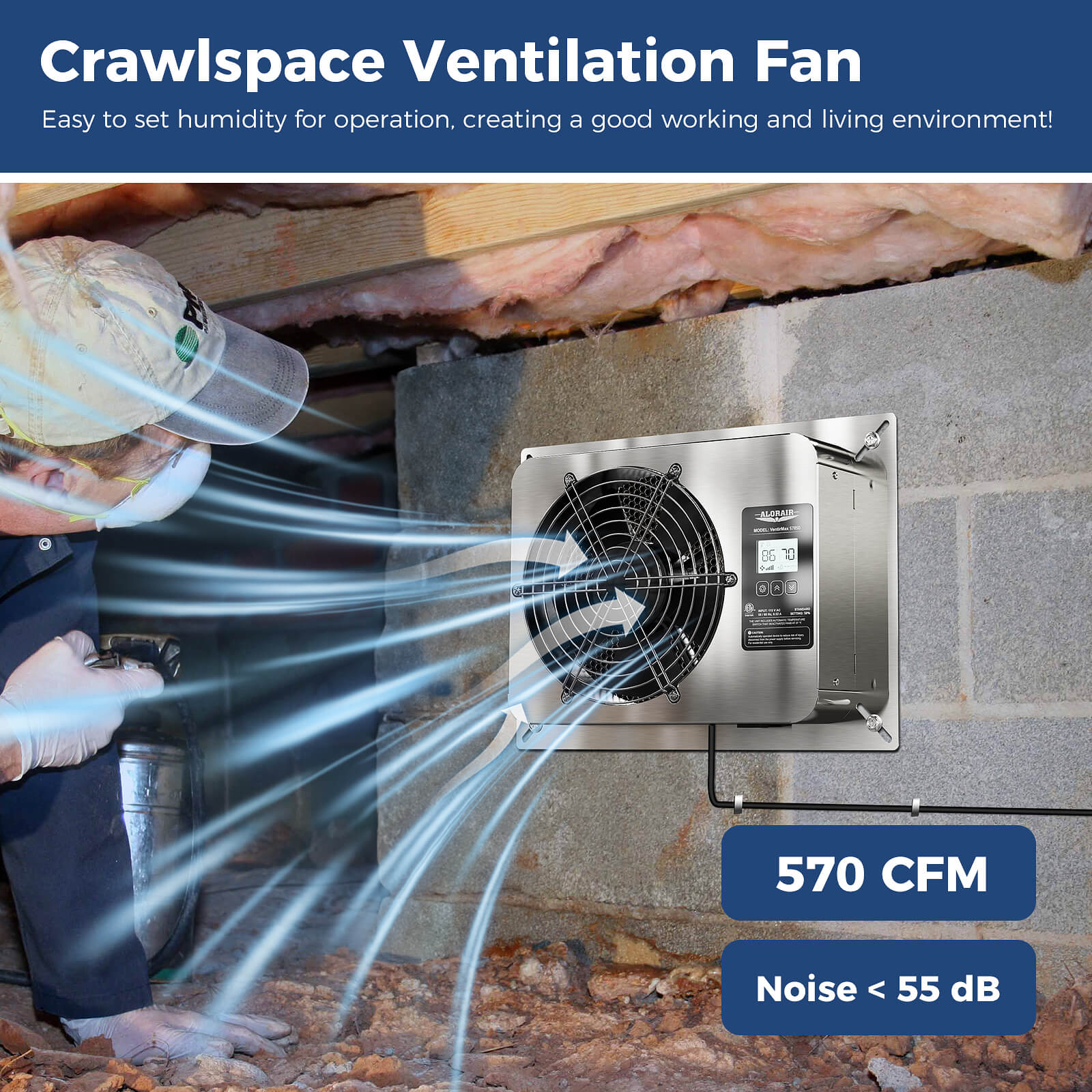

The VentirMax 570SD utilizes an advanced, moisture-resistant motor that produces 570 CFM of airflow while being quiet. This crawl space fan ensures that fresh outside air can circulate under the house and porch.



Proper Use and Maintenance
Location: Install the ventilation fan behind the existing ventilation hole. Vents should be
installed a minimum of 3 feet from the corner of a building.
Note: Crawl space fans must be installed with electrical control boxes and motors facing inside
the crawl space.
1. Remove the cover of existing doors or ventilation holes around the building.
2. Place the crawl space ventilation fan in front of the vent.
3. If mounted on a block or brick base, mark positions at the four corners of the metal panel and drill 5/16" holes with a masonry bit. Install wall anchors at the opening and secure the crawl space ventilation fan to the wall with 4 screws.
4. If installed on a mesh of wood aggregate, edge joists, or existing crawlspace vents, secure the crawl space vent with screws and nuts at the four corners of the metal panel of the vent.
